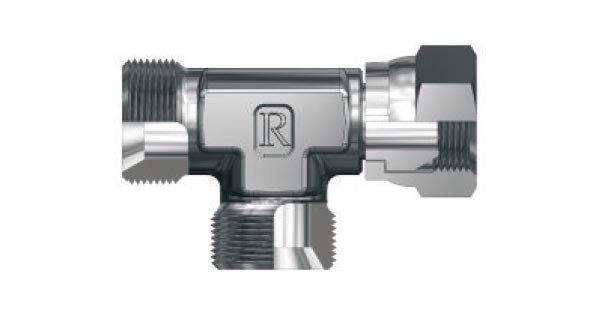

| BSP YANBACAK TE BSP SWIVEL RUN TEE |
|||||||
| MALZEME KODU MATERIAL CODE |

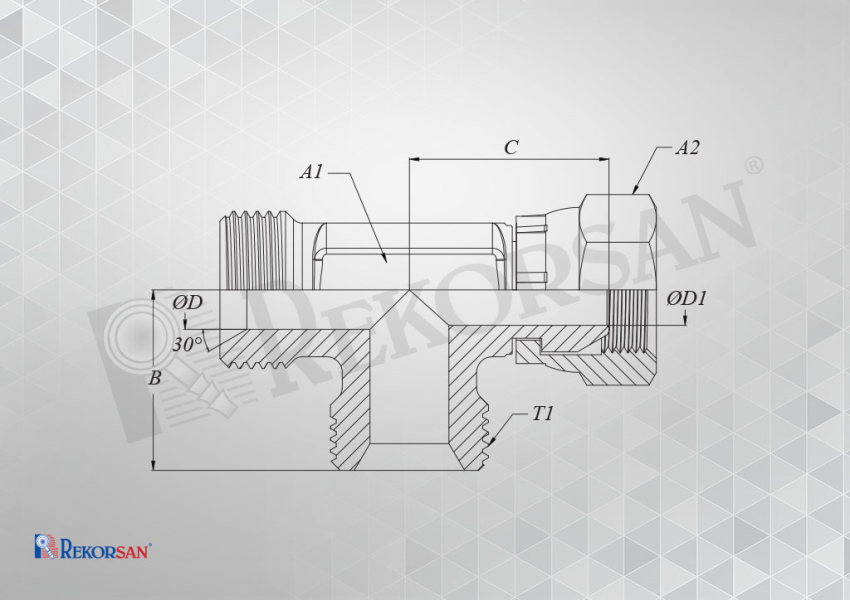

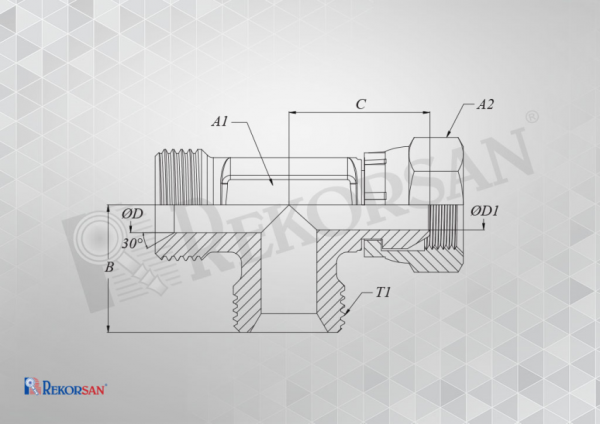

DİŞ ÖLÇÜSÜ THREAD SIZE T1 |
B | C | ØD | ØD1 | A1 | A2 |
| RK-1010-RYT | R1/8-28 | 20 | 20 | 4 | 4 | 12 | 14 |
| RK-1313-RYT | R1/4-19 | 21.5 | 21.5 | 6 | 5.5 | 12 | 17 |
| RK-1717-RYT | R3/8-19 | 22.5 | 22.5 | 9 | 8 | 14 | 22 |
| RK-2121-RYT | R1/2-14 | 28.5 | 28.5 | 12 | 10 | 21 | 27 |
| RK-2626-RYT | R3/4-14 | 31 | 36 | 15 | 15 | 24 | 32 |
| RK-3333-RYT | R1″-11 | 42 | 42 | 20 | 20 | 36 | 41 |
| RK-4242-RYT | R1″1/4-11 | 49 | 49 | 26 | 26 | 41 | 50 |
| RK-4848-RYT | R1″1/2-11 | 58 | 58 | 31 | 31 | 50 | 55 |
