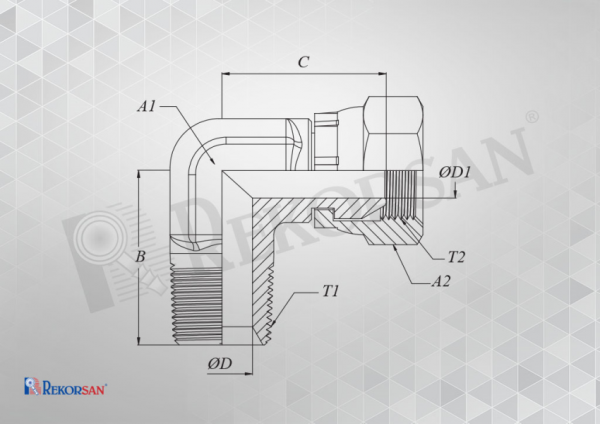

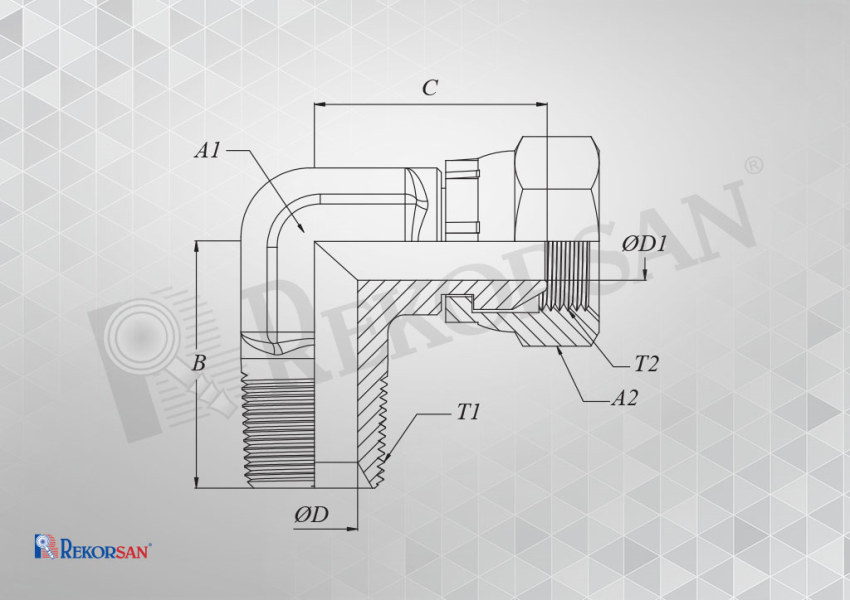

| BSPT – BSP TERS DİRSEKLER MALE BSPT THREAD – BSP FEMALE SWIVEL ELBOWS |
||||||||
| MALZEME KODU MATERIAL CODE |
DİŞ ÖLÇÜSÜ THREAD SIZE T1 |
DİŞ ÖLÇÜSÜ THREAD SIZE T2 |
B | C | ØD | ØD1 | A1 | A2 |
| RK-1010-RTD | 1/8-28 BSPT | R1/8-28 | 20 | 20 | 4 | 4 | 12 | 14 |
| RK-1313-RTD | 1/4-19 BSPT | R1/4-19 | 28 | 23 | 7 | 5.5 | 14 | 17 |
| RK-1717-RTD | 3/8-19 BSPT | R3/8-19 | 28.5 | 25 | 9 | 8 | 17 | 22 |
| RK-2121-RTD | 1/2-14 BSPT | R1/2-14 | 32.5 | 28 | 12 | 10 | 19 | 27 |
| RK-2626-RTD | 3/4-14 BSPT | R3/4-14 | 42 | 37.5 | 15 | 15 | 27 | 32 |
| RK-3333-RTD | 1″-11 BSPT | R1″-11 | 45.5 | 43 | 20 | 20 | 36 | 41 |
| RK-4242-RTD | 1″1/4-11 BSPT | R1″1/4-11 | 50 | 49.5 | 26 | 26 | 41 | 50 |
| RK-4848-RTD | 1″1/2-11 BSPT | R1″1/2-11 | 60 | 58 | 31 | 31 | 50 | 55 |
| RK-6060-RTD | 2″-11 BSPT | R2″-11 | 77.5 | 78 | 44 | 44 | 60 | 70 |
